QCX2 Series Magnetic Starter
Product Detail:
1.Application
QCX2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.
2.Specification
| Type | RatedCurrent(A) | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| 220V230V | 380V400V | 415V | 440V | 500V | 660V690V | |||
| QCX2-9 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | JR28 D1312JR28 D1314 |
| QCX2-12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | JR28 D1316 |
| QCX2-18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | JR28 D1321 |
| QCX2-25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | JR28 D1322JR28 D2353 |
| QCX2-32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | JR28 D2355 |
| QCX2-40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | JR28 D3353JR28 D3355 |
| QCX2-50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | JR28 D3357JR28 D3359 |
| QCX2-65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | JR28 D3361 |
| QCX2-80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | JR28 D3363JR28 D3365 |
| QCX2-95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | JR28 D3365 |

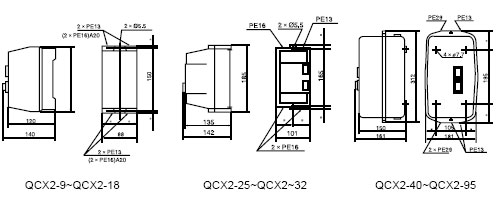

3.Dimension & Mounting Size
