Product Detail:
1.Application
CJX2-Z series DC operated AC contactor is suitable for use in the circuits up to rated voltage660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remotecontrolling circuit making, breaking and frequent starting AC motors. It can also combine withthe auxiliary contact group, air delayer, thermal relay devices etc.
2.Specification
Type | CJX2-09Z | CJX2-12Z | CJX2-18Z | CJX2-25Z | CJX2-32Z | ||
Rated working current(A) | 380V | AC3 | 9 | 12 | 18 | 25 | 32 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | ||
660V | AC3 | 6.6 | 8.9 | 12 | 18 | 21 | |
AC4 | 1.5 | 2 | 3.8 | 4.4 | 7.5 | ||
Rated heat current(A) | 25 | 25 | 32 | 40 | 50 | ||
Controllable power(KW) | 220/240V | 2.2 | 3 | 4 | 5.5 | 7.5 | |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | ||
415V | 4 | 5.5 | 9 | 11 | 15 | ||
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
600/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | ||
Weight(Kg) | DC contactor | 0.64 | 0.34 | 0.65 | 0.65 | 0.95 | |
Measure(Mm3) | DC contactor | 76x115x47 | 76x115x47 | 76x120x47 | 88x130x59 | 86x135x59 | |
Pole | 3, 4 | 3, 4 | 3 | 3, 4 | 3 | ||
Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 | ||
Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 | ||
Mechanical life x104 | 1000 | 1000 | 1000 | 1000 | 800 | ||
Electrical life | AC x104 | 100 | 100 | 100 | 100 | 80 | |
AC4 x104 | 20 | 20 | 20 | 20 | 20 | ||
Operating frequency | Electrical life | AC3 x104 | 1200 | 1200 | 1200 | 1200 | 600 |
AC4 x104 | 300 | 300 | 300 | 300 | 300 | ||
Mechanical life x104 | 3600 | 3600 | 3600 | 3600 | 3600 | ||
Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 | ||
Working voltage | Close | DC% | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us |
Open | DC% | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us |
Type | CJX2-40Z | CJX2-50Z | CJX2-65Z | CJX2-80Z | CJX2-95Z | ||
Rated working current(A) | 380V | AC3 | 40 | 50 | 65 | 80 | 95 |
AC4 | 18.5 | 24 | 28 | 37 | 44 | ||
660V | AC3 | 34 | 39 | 42 | 49 | 55 | |
AC4 | 9 | 12 | 14 | 17.3 | 21.3 | ||
Rated heat current(A) | 60 | 80 | 80 | 125 | 125 | ||
Controllable power(KW) | 220/240V | 11 | 15 | 18.5 | 22 | 25 | |
380/400V | 18.5 | 22 | 30 | 37 | 45 | ||
415V | 22 | 30 | 37 | 45 | 45 | ||
500V | 22 | 30 | 37 | 55 | 55 | ||
600/690V | 30 | 33 | 37 | 45 | 55 | ||
Weight(Kg) | DC contactor | 2.185 | 2.185 | 2.185 | 2.525 | 2.525 | |
Measure(Mm3) | DC contactor | 128x175x81 | 128x175x87 | 128x175x87 | 128x183x87 | 128x183x8 | |
Pole | 3, 4 | 3, 4 | 3, 4 | 3, 4 | 3, 4 | ||
Rated working voltage(V) | 380, 660 | 380, 660 | 380, 660 | 380, 660 | 380, 660 | ||
Rated insulation voltage(V) | 660 | 660 | 660 | 660 | 660 | ||
Mechanical life x104 | 800 | 800 | 800 | 600 | 600 | ||
Electrical life | AC x104 | 80 | 80 | 80 | 60 | 60 | |
AC4 x104 | 15 | 15 | 15 | 10 | 10 | ||
Operating frequency | Electrical life | AC3 x104 | 600 | 600 | 600 | 600 | 600 |
AC4 x104 | 300 | 300 | 300 | 300 | 300 | ||
Mechanical life x104 | 3600 | 3600 | 3600 | 3600 | 3600 | ||
Rated controlled voltage(V) | 24-660 | 24-660 | 24-660 | 24-660 | 24-660 | ||
Working voltage | Close | DC % | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us | 0.85-1.1Us |
Open | DC % | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us | 0.10-0.75Us |

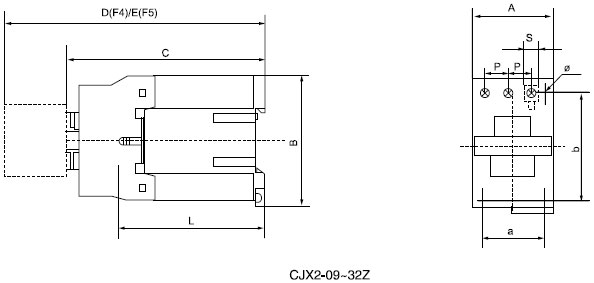

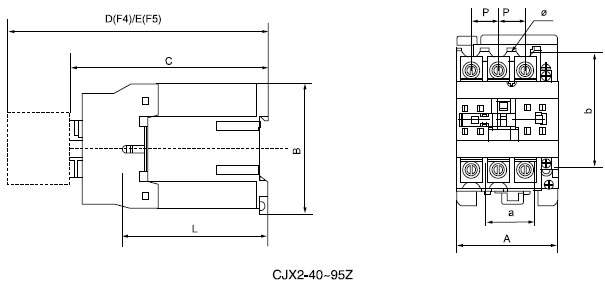

3. Outline and Mounting Dimension
CJX2-09Z-12Z | Amax | Bmax | Cmax | Dmax | Emax | a | b | φ | L | P | S |
CJX2-18Z | 47 | 76 | 82(116) | 120.5(154.5) | 140.5(174.5) | 34/35 | 50/60 | 4.5 | 60(95) | 105 | 8.6 |
CJX2-25Z | 47 | 76 | 87(122) | 125.5(160.5) | 145.5(180.5) | 34/35 | 50/60 | 4.5 | 61(96) | 11.3 | 10.4 |
CJX2-32Z | 57 | 86 | 95(131) | 133.5(169.5) | 153.5(189.5) | 40 | 48 | 4.5 | 70(107) | 13.2 | 11.7 |
CJX2-4011Z-6511Z | 57 | 86 | 100(138) | 138.5(176.5) | 158.5(196.5) | 40 | 48 | 4.5 | 71.6(120) | 14.5 | 13 |
CJX2-4004/4008Z -6504/6508Z | 77 | 129 | 116(173) | 154.5(211.5) | 174.5(231.5) | 40 | 100/110 | 6.5 | 78(135) | 20 | 8.6 |
CJX2-8011Z-9511Z | 84 | 129 | 116(173) | 154.5(211.5) | 174.5(231.5) | 40 | 100/110 | 6.5 | 78(135) | 20 | 8.6 |
CJX2-09Z-12Z | 87 | 129 | 127(188) | 165.5(226.5) | 185.5(246.5) | 40 | 100/110 | 6.5 | 83(140) | 23.5 | 12 |
CJX2-8004/8008Z -9504/9508Z | 96 | 129 | 127(183) | 160.5(221.5) | 180.5(241.5) | 40 | 100/110 | 6.5 | 83(140) | 23.5 | 12 |
