HT6 Series Super Time Relay
Product Detail:
FEATURES :
Special CMOS integrated circuit,super small bulk,high relia
High repeat accuracy:±20% (including the initiate) shorter reset time :0.1 second (Max).
Led indicating operating .
socket for electromagent relay can be used.
pule output (HT6U).
Application :
Output Controlload:HT6-29(-0):5A 250VAC;5A30VDC resistant loadHT6-4(-0):3A 250VAC; 3A 30VDC resistant loadTH6U:3A 30VDC resistant loadRated voltage:
(see selecting code)
single phase entire wave rectifier power can be used ofr DC voltage on 85% to 110% of rated voltage (90% to 110% for 12VDC),
Power Dissipation:
1W for DC
2.2W for AC
Socket:
DIN rail mounting:mounting:PYF08A/HT6-2,Yf14A/HT6-4 PCB
Jointing mounting:PY08/HT6-2,PY14/HT6-4
PCB mounting:PY08-0/HT6-2,PY14/HT6-4
FEATURES :

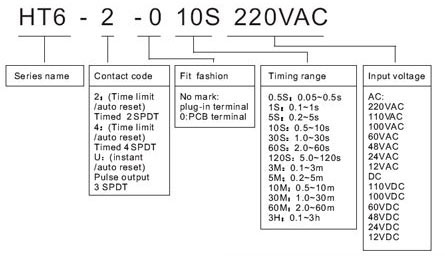

SELECTING CODE :
General parameters :
| Repeat error | ±2% (Max) |
| Schedule error | ±10% (with in 0.5s:±10Ms) |
| Reset time | 0.1s (Max) |
| iming error for operating voltage | ±2% |
| Timing error for ambienttemperature | ±5% |
| Insulation resistance | 100Mohms @500VDC |
| Dielectric strength | 1500VAC 50/60 Hz lmin,(input to contact)1000VAC 50/60Hz 1 min.(between the contacts) |
| Ambient temperature storage | -10℃ to 50℃ operating:-10℃ to 40℃ |
| Relatve humidity | 35% to 85% |
| Vibration | 0 to 55Hz, 1.0mm double amplitude |
| Mechanical life | atleast 10000000times (1800times /hour no load added on the contact) |
| Electric life | 100000times (rated load) |
| weight | 50g |

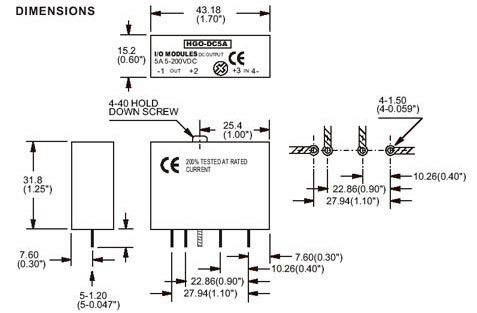

Diminsions :

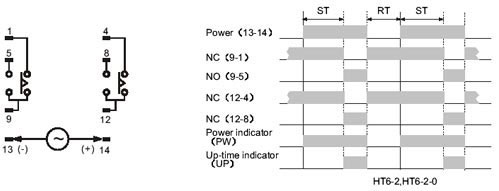

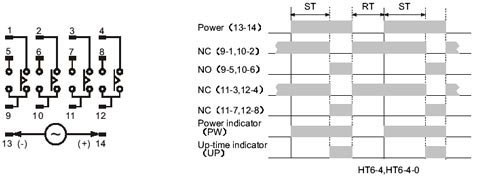

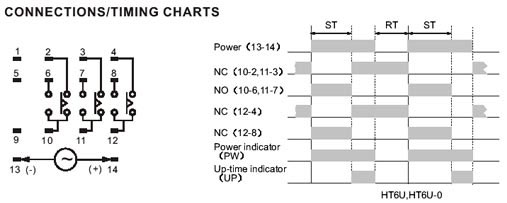

Connection/Timing Charts:
