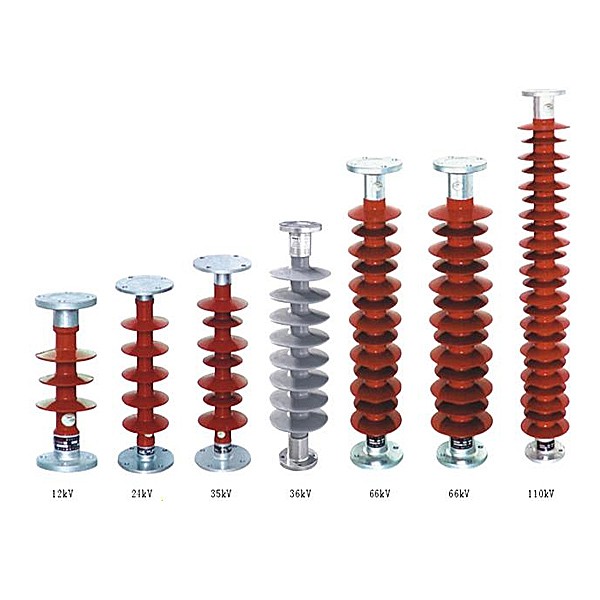

Composite Post Insulator
Product Detail:
1.Composite Post Insulator
This product is applied to high voltage power line service.And Have features of good gydrophobicity,anti-ageing,anti-leakage trace and electric erode prood,tensile strength and bending strength,strong mechanical strength,shok resistance good quakeproof and brittle failure proof,light weight,easy to installation,and the installation iutline of top and base are the same size with porcelainpin type,they can exchange to use each other.
2.Main Technical Parameters
| Product Model | Rated Voltage | Rated Mechanical Bending Load(KN) | Structure Height H.(mm) | Insulating distance Li.(mm) | Insulating distance Li.(mm) | Diameter of shed D.(mm) | Lightning impulse with stand voltage(peak)(KV) | P.F.wet wighstand voltage(virtualalue)(KV) |
| FZSW-10/4 | 10 | 4 | 215 | 125 | 290 | 100/90 | 75 | 42 |
| FZSW-20/8 | 24 | 8 | 400 | 320 | 750 | 142 | 150 | 65 |
| FZSW-35/6 | 35 | 6 | 450 | 360 | 946 | 148/118 | 185 | 95 |
| FZSW-66/6 | 66 | 6 | 760 | 630 | 1886 | 160/130 | 410 | 185 |
| FZSW-66/8 | 66 | 8 | 760 | 630 | 2010 | 220/190 | 410 | 185 |
| FZSW-110/10 | 110 | 10 | 1220 | 1080 | 3530 | 220/190 | 500 | 230 |
| FZSW-220/10 | 220 | 10 | 2440 | 2200 | 7060 | 220/190 | 1000 | 395 |
