Mounting Enclosures[back Boxes
Product Detail:

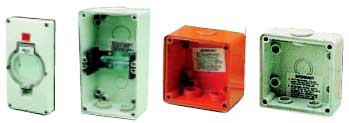

All ANDELI Mounting Back Boxes are moulded in UV stabilised rigid RVC to facilitate glueing of fittings for conduit entry.
Ample conduit and cable entries are provided and there is plenty of wiring room for easy installation.
All screwed conduit entries are provided with plugs. The multigang enclosures feature moulded bridges be-tween modules to ensure switches and sockets sit flush on a continuous surface. Moulded dividers are also avail-able for multigang boxes to Segregate services and are standard with 4,6,8,9, and 16 gang enclosures.
Each enclosure has a number of mounting points and 220/10 Sealing Plugs are provided to double insulate mounting screw heads and ensure the IP rating.
Moulde gaskets are supplied with switch and socket modules.
Options Available
Resistant Orang-add RO to Catalog Number e.g.56E2 becomes 56E2RO.
Options Available
Stainess steel pole mounting bracket kit to suit 56E2,56E3 and 56E4VH Modules. Catologue No 56PMK. Stainless steel mounting feet suit all enclosures. Catalogue Number56MF.
| Catalogue Numer | No.of Gangs | O/A*Dims. (H)×(W)×(D) | Mouting Points | No.of Conduit Entries(mm) | Cut Out Provision (mm) |
| 56E1 | 1 | 101 × 101 × 63 | 8 | 2 × 25.1 × 32 | 1 × 25/32 |
| 56ES1 | 1 | 101 × 101 × 38 | 4 | 1 × 25.1 × 20 | 1 × 20/25 |
| 56E2 | 2 | 198 × 101 × 63 | 8 | 2 × 25.1 × 32 | 1 × 25.1/32 |
| 56ED2 | 2 | 198 × 101 × 100 | 8 | 2 × 40 | 1 × 25.1/32 |
| 56ES2 | 2 | 198 × 101 × 38 | 4 | 1 × 25.2 × 32 | 2 × 20/25 |
| 56E2/4EL | 2 | 198 × 101 × 105 | 8 | 2 × 25.1 × 32 | 1 × 25.1×32 |
| 56E3 | 3 | 294 × 101 × 63 | 16 | 2 × 25.1 × 32 | 2 × 25.1 × 32 |
| 56E4 | 4 | 198 × 198 × 63 | 16 | 2 × 25.2 × 32 | 2 × 25.1 × 322.1 × 40 |
| 56E4VH | 4 | 391 × 101 × 63 | 16 | 2 × 25.1 × 32 | 2 × 25.1 × 32.1 × 40 |
| 56E6 | 6 | 294 × 198 × 63 | 24 | 2 × 25.2 × 32 | 2 × 25.2 × 32.2 × 40 |
| 56E8 | 8 | 391 × 198 × 63 | 28 | 2 × 25.2 × 32 | 4 × 25.2 × 32.2 × 40 |
| 56E9 | 9 | 294 × 294 × 63 | 28 | 2 × 25.2 × 32 | 4 × 25.1 × 32.1 × 40 |
| 56E16 | 16 | 391 × 391 × 63 | 48 | 2 × 25.2 × 32 | 6 × 25.6 × 32.4 × 40 |
56E2/4EL denotes an E2 enclosure complete with 56EL4N Cover and DIN rail to suit 4EL RCDs.
Portable Combination Switched Sockets with RCD

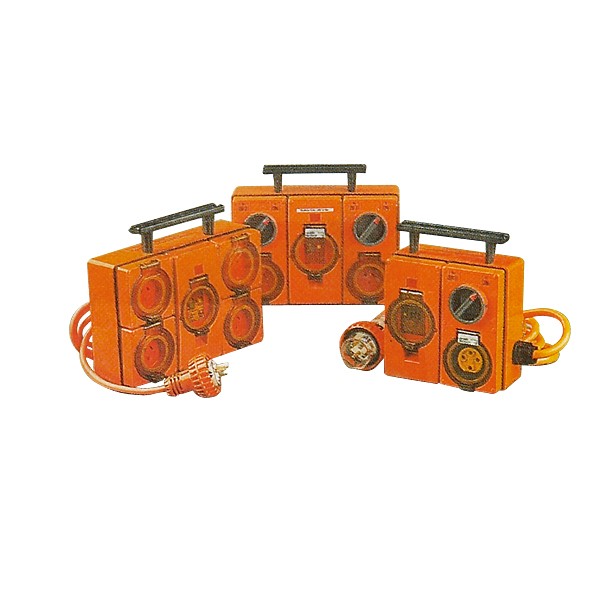

Ruggedly constructed, these portable units feature an easy to carry handle, a hanging facility for builder's poles and 3 metres of heavy duty flexible cord.
| Catalogue Numer | No.of Phases | Ithe (A) | U e (V) | No.of Sockets | Tripping Sensitivity | Catalogue Number Matching Plug | Catalogue Number Angled Plug | Overall Dimensions (H)×(W)×(D) | Socket Config |
| 56C310EL2P | 1 | 10 | 250 | 2(3 flat pins) | 30mA | 56P310 | - | 243 × 294 × 105 | A |
| 56C315ELP | 1 | 15 | 250 | 1(3 flat pins) | 30mA | 56P315 | - | 243 × 195 × 105 | G |
| 56C420ELP | 3 | 20 | 415 | 1(4 round pins) | 30mA | 56P420 | 56PA420 | 243 × 195 × 105 | L |
| 56SO4ELP15 | 1 | 10 | 250 | 4(auto,3 flat pins) | 30mA | 56P310 | - | 243 × 294 × 105 | A |
Refer to pgae 24 & 25 for explanation of pin configurations.
Note:Combinations with various pin configurations, current ratings and 100mA
Special order are available upon request
