Enclosures[back boxes
Product Detail:

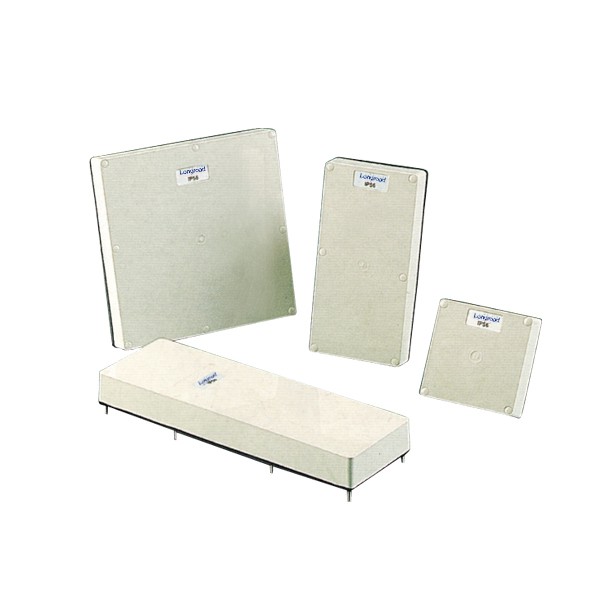

Enclosure Lids(Covers)
Mounting enclosure lids are moulded in UV stabilised polycarbonate. All are 28mm high and supplied complete with sealing gasket.
Options Available
Resistant Orange-add RO to Cat. No.e.g.56L1 becomes 56L1RO.56L1 available in Chemical Resistant Grey-add CG to Cat. NO.e.g.56L1 becomes 56L1CG.
| Catalogue Numer | Catalogue Number | Dimensions(mm) | ||||
| A | B | C | D | E | ||
| 56L1 | 56L1 | 95 | 95 | 28 | 84 | 84 |
| 56L2 | 56L2 | 192 | 95 | 28 | 84 | 181 |
| 56L3 | 56L3 | 288 | 95 | 28 | 84 | 277 |
| 56L4 | 56L4 | 192 | 192 | 28 | 181 | 181 |
| PACK QTY | |
| 1 gang | 4 9581/RG |
| 2 gang | 4 9581/RG |
Suitable for any Rockergrid moudule.
Rockergrind modules fix directly into moulded-in grid sing screw fixing.
Enables a wide range of switch variations in IP66 rated enclosures.
Can be used to provide 2 gang switch option where space is insufficient for standard Weatherseal module.
Switchgear Cover Assemblies
The 56 Series Two Gang Cover Assembies are moulded in hi-impact poly-carbonate and feature a specially designed mounting bracket which will accommo-date the full range of circuit breakers, RCDs and combination MCB/ RCDs.
Covers suit all 56 Series Enclosures(minimum standard depth 63mm) and are supplied with neon indicators which can be wired from either the line or load side of the switch.
| Catalogue Number | Mondule Type | No.of Poles | Module Width |
| 56CB1N | MCB | 1 | 1 |
| 56CB2N | MCB | 2 | 2 |
| 56CB3N | MCB | 3 | 3 |
| 56OB4N | MCB | 4 | 4 |
| 56EL2N | 4EL RCD | 2 | 21/2 |
| *56EL2 | 4EL RCD | 2 | 21/2 |
| 56EL4N | 4EL RCD | 4 | 4 |
Rockergrid cover modules
Resistant Orange-add RO to Catalogue Number e.g.56CB1N becomes 56CB1NRO.
Chemical Grey-add CG to Catalogue Number e.g.56CBIN becomes 56CBINCG.
