AML8 RCDRCCB
Product Detail:
Technical data
Standard:IEC1008,GB16916, BS EN61008
Rated voltage)Un): 2pole:230VAC 4pole:400VAC
Rated current (In): 25,40,63A
Rated residual operating current (I△n):30,100,300,500mA
Rated residual non-operating current (I△no):0.5 I△n
Residual current off-time:≤ 0.1s
Minimum value of rated making and breaking capacity (1m): 1KA
Rated conditional short-circuit current (Inc): In=25,40A Inc=1500A In=63A Inc=3000A
Installation:On symmetrical DIN rail
Applicable standards:
International standard:
IEC 61008-1 residual current operated without integral overcurrent
Protection of household and similar uses (RCCB)
Normal usage and mounting conditions:
a) Ambient temperature: the breaker can work under ambient air temperature -25℃ ~+40℃;
b)Altitude: the breaker can work under altitude not exceed 2000m;
c)Class of pollution: the class of pollution is class 2;
d)Installation type: the installation type is Ⅲ;
e) Mounting position: the breaker can be mounted in rail,or horizontally, vertically. it will not decrease their electric features:
f)Environmental protection: Environmental factors are adequately considered in the design of circuit breaker,with many recoverable and degradable materials.
g)Power source in-line: the in-line can be connected from different directions, which will not affect its electric features.
Main teachnical data:
| Model | AML8 | ||
| Number of poles | 2P 4P | ||
| Rated current in | A | 10 16 25 32 40 63 | |
| Rated frequency | Hz | 50 | |
| Rated operating voltage Ue | V | 230 400 | |
| Rated isolating voltage Ui | V | 500 | |
| rated short-circuit making capacity Im | A | 630 | |
| Rated limit short-circuit current Ic | A | 6000 | |
| Rated residual actuating current I△n | mA | 30 100 300 | |
| Rated residual non- actuating current I△no | mA | 15 50 150 | |
| Breaking time I△=I△N I△=5I△N | ms | ≤100 | |
| ms | ≤40 | ||
| Frequency of operation cycle | per hour | time | 240 |
| electrical | time | 1000 | |
| non-electrical | time | 2000 | |
| Level of protection | IP20 | ||
| Working feature with DC weight | A,AC(type) | ||
| Mounting type | Rail plug-in | ||
| Connection type | Terminal with clip | ||
| Ambient temperature | Min/Max | ℃ | -25/+40 |
| Altitude | Max | m | 2000 |
| Connection lead | Min/Max | mm2 | 1/25 |
| Tightening torque | N.m | 2 | |
| Extermal dimensions (LXWXH) | 2P | mm | 82.5X36X76 |
| 4P | mm | 82.5X72X76 | |
| Weight | 2P | kg | 0.275 |
| 4P | kg | 0.360 |

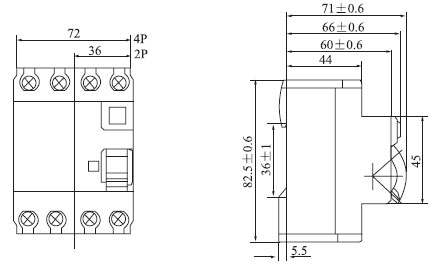

Outline installation dimensions:
Outline and installation dimensions, see table it is mounted by steal mounting quide rail, type TH35-7.5
