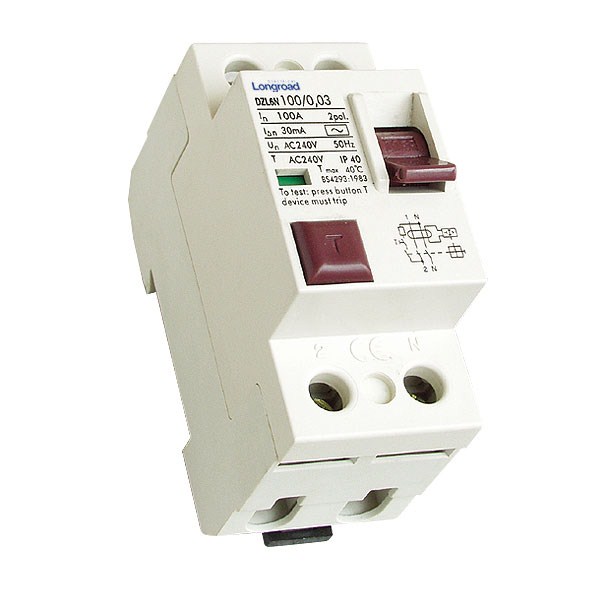

DZL6N Residual Current Circuit Breaker
Product Detail:
1.Application
DZL6N residual current circuit breaker is in conformity with the standards of IEC61008. It cancut off the fault circuit immediately on the occasion of shock hazard or earth leakage of trunkline. Thus it is suitable to avoid the shock hazard and fire caused by earth leakage. It can beused in circuits up to single phase 240V,threephase 415V, 50 or 60Hz.
2.Main Technical Parameter
| Type | DZL6N |
| Number of poles | 2P, 4P |
| Rated current In(A) | 10, 16, 20, 25,32, 40, 50, 63 |
| Rated residual operating current I∆n(mA) | 30,100,300 |
| Rated residual non-operating current I∆no(mA) | 0.5I∆n |
| Voltage Un(V) | 240(220)/415(380) |
| Residual current off-time | <0.1s |
| Ultimate short circuit current Inc (A) | 3000A |
