Yueqing long road electric co.,Ltd

ADS7 Star-delta Starter

Category:- Starter

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: 1. SpecificationTypeRated CurrentAC3415V(A)3-phase Motor CapacityAC3load 415VDirect-on-line, surface mounting Direct-on-line, flush mounting Direct-on-line, surface mounting, reversing Direct-on-line, surface mounting, with isolator0.74-1.11A0.37KW0.50HP1.11-1.66A0.55KW0.75HP1.66-2.50A1. …


Detail

Messages

Product Detail:

1. Specification

TypeRated CurrentAC3 415V(A)3-phase Motor CapacityAC3 load 415V
Direct-on-line, surface mounting
       Direct-on-line, flush mounting
       Direct-on-line, surface mounting, reversing
       Direct-on-line, surface mounting, with isolator
0.74-1.11A0.37KW0.50HP
1.11-1.66A0.55KW0.75HP
1.66-2.50A1.10KW1.50HP
2.50-3.70A1.50KW2.00HP
3.70-5.60A2.50KW3.40HP
5.60-8.40A4.00KW5.50HP
8.40-11.9A5.50KW7.50HP
11.4-16.0A7.50KW10.0HP
16.0-23.0A11.0KW15.0HP

22.0-33.0A15.0KW20.0HP
TypeRated CurrentAC3 415V(A)3 Phase Motor CapacityAC3 load 415V

4.30-6.40A3.00KW4.00HP
Star-delta, surface mounting6.40-9.70A5.00KW6.80HP

9.70-14.5A7.50KW10.0HP

14.5-20.6A10.0KW13.5HP

19.7-27.7A15.5KW20.0HP

26.0-38.0A22.0KW30.0HP

38.0-57.0A30.0KW40.0HP

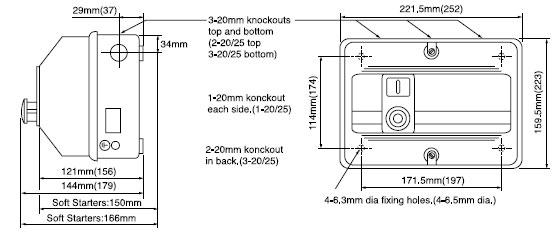

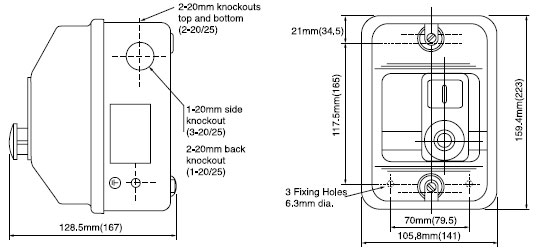

2. Outline and Mounting Dimension、
