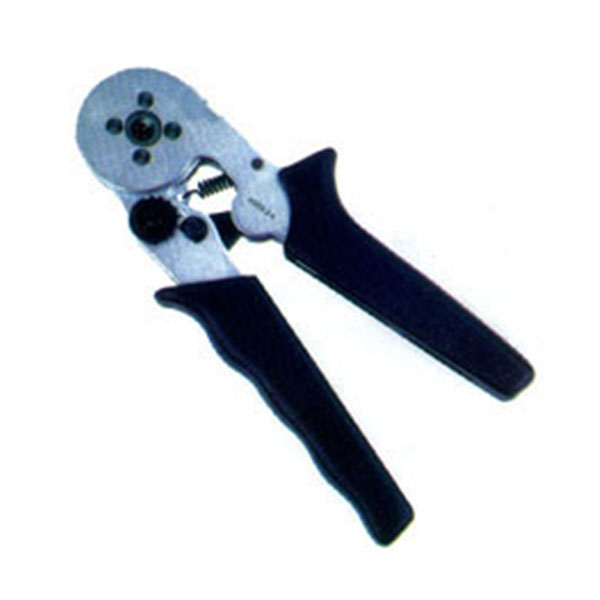

Four-mandrel crimping pilers for turned contacts

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: It is applicable for special terminals in 0.08-6mm2on non-welding connection complied with standard electric conneection. when crimping, put the teminal into the crimping pliers laterally,when the demanded pressing force is reached, the brake unit would release the crimping jaw automaticlly, thus is could ensure high quality crimping standard during repeatedly crimping.

Detail

Messages

Product Detail:

HSC8 1-4 / HSC8 2-4

It is applicable for special terminals in 0.08-6mm2on non-welding connection complied with standard electric conneection. when crimping, put the teminal into the crimping pliers laterally,when the demanded pressing force is reached, the brake unit would release the crimping jaw automaticlly, thus is could ensure high quality crimping standard during repeatedly crimping.

Technical parameter:

Model	Range of application	Capacity mm²	AWG	links length weight
Model	Range of application	Capacity mm²	AWG	Length mm	weight kg
HSC8 1-4	Harting	0.08-2.5	28-6	175	0.36
HSC8 2-4	Harting	0.14-6.0	26-10	175	0.36
