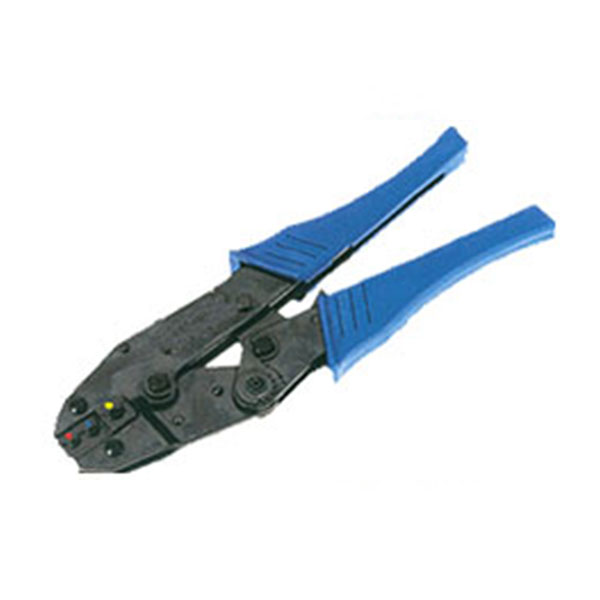

Hand crimping tools
Product Detail:
Comparison:
1.The opponent of ratchet crimping tools is made of special steel.
2.The structure design meet human bing engineering.when crimping cable lug, it can save 50% energy.
3.The design of accurate crimping moulds and complete locking (self locking and releasing mechanic unit) ensure high of crimping quality when crimping repeatedly.
4.Accurate adjustment has been made before ex-works delivery.
5.Due to perfect handle gripping position, light and logical structure and handle shape design matching human being engineering principle, it guar antee perfect crimping effect
HS-30J For surge connectors
  |   |   |   |
| HS-10 For non-insulated cable links | HS-04WF for wire-end ferrules | HS-101 for non-insulated cable links | HS-03B For non-insulated plugs connectors 4.8+6.3mm |
Technical parameter:
| Model | Range of application | Capacity mm2 | AWG | links length weight | |
| Length mm | weight kg | ||||
| HS30J | Insulated cable links+butt connectors | 05-6.0 | 20-10 | 230 | 0.6 |
| HS-10 | Non-insulated cable links | 1.5-6.0 | 22-10 | 230 | 0.6 |
| HS101 | Non-insulated cable links | 1.0-10 | 17-7 | 230 | 0.6 |
| HS-04WF | Wire-end ferrules | 1.0-6 | 17-10 | 230 | 0.6 |
| HS-03B | Non-insulated plugs connectors 4.8+6.3mm | 1.0-4.0 | 17-12 | 230 | 0.6 |
    |  |   |
| HS-04WFL For wire-end ferrules | HS-04WF2C For wire-end ferrules+insulated cable links | HS-26TW For wire-end ferrules |
  |   |   |
| LY-03C For insulated cable links+butt connectors | HS-103/LY-13C | HS-35WF for wire-end ferrules |
Technical parameter:
| Model | Range of application | Capacity mm2 | AWG | links length weight | |
| Length mm | weight kg | ||||
| HS-04WFL | Wire-end ferrules | 05-4 | 20-12 | 230 | 0.6 |
| HS-26TW | Wire-end ferrules | 0.5-6 | 20-10 | 230 | 0.6 |
| HS-35WF | Wire-end ferrules | 10.0-35.0 | 8-2 | 230 | 0.6 |
| HS-06WF2C | Wire-end ferrules + insulated cable links | 0.5-6 | 20-10 | 230 | 0.6 |
| LY-03C | insulated cable links+butt connectors | 0.5-6 | 20-10 | 230 | 0.6 |
| HS-103 | Crimping cap(for insulated closed terminals) | 0.5-6 | 20-10 | 230 | 0.6 |
HS05FL/HS-06FL for tab 90° flag terminals HS-07FL for tab 90° flag terminals
Technical parameter:
| Model | Range of application | Capacity mm2 | AWG | links length weight | |
| Length mm | weight kg | ||||
| HS-05FL | Lug connectors and non-insulated plug connectors | 4.8 | 3 | 250 | 0.55 |
| HS-06FL | Lug connectors and non-insulated plug connectors | 6.3 | 6 | 250 | 0.55 |
| HS-07FL | Flag female insulating join | 1.25-2.5 | 3-6 | 250 | 0.55 |
