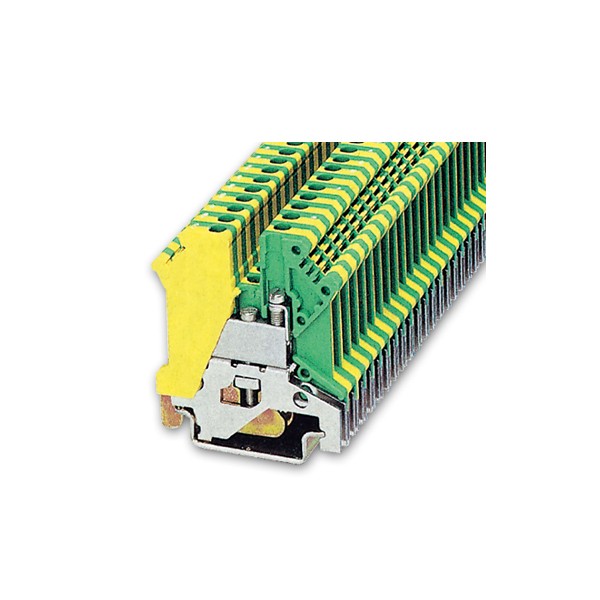

UK Terminal Block

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: 1.SpecificationsModelHard Wire(mm2)Soft Wire(mm2)Rated Current(A)Rated Voltage(V)Dimension(mm)UK2.5B0.2-40.2-2.5326906.2 x 42.5 x 42UK3N0.2-40.2-2.5328006.2 x 42.5 x 42UK5N0.2-60.2-4418006.2 x 42.5 x 47UK6N0.2-100.2-2.5578006.2 x 42.5 x 47UK10N0.5-160.5-107680010.2 x 42.5 x 47UK16N2.5-254-1610180012 …

Detail

Messages

Product Detail:

1.Specifications

Model	Hard Wire(mm2)	Soft Wire(mm2)	Rated Current(A)	Rated Voltage(V)	Dimension(mm)
UK2.5B	0.2-4	0.2-2.5	32	690	6.2 x 42.5 x 42
UK3N	0.2-4	0.2-2.5	32	800	6.2 x 42.5 x 42
UK5N	0.2-6	0.2-4	41	800	6.2 x 42.5 x 47
UK6N	0.2-10	0.2-2.5	57	800	6.2 x 42.5 x 47
UK10N	0.5-16	0.5-10	76	800	10.2 x 42.5 x 47
UK16N	2.5-25	4-16	101	800	12.2 x 42.5 x 54
UK35N	0.75-50	0.75-35	150	1000	15.2 x 50.0 x 62
UKH50	16-50	25-50	150	1000	20 x 70.5 x 83.5
UKH95	25-95	35-95	232	1000	25 x 83 x 97.5
UKH150	35-150	50-150	309	1000	31 x 100 x 118.5

Model	Hard Wire(mm2)	Soft Wire(mm2)	Rated Current(A)	Dimensions(mm)
USLKG2.5	0.2-4	0.2-2.5	32	6.2 x 42.5 x 42
USLKG3	0.2-4	0.2-2.5	32	6.2 x 42.5 x 47
USLKG5	0.2-6	0.2-4	41	6.2 x 42.5 x 47
USLKG6N	0.2-10	0.2-6	57	8.2 x 42.5 x 47
USLKG10N	0.5-16	0.5-10	76	10.2 x 42.5 x 47
USLKG16N	2.525	4-16	101	12.2 x 42.5 x 54
USLKG35N	0.75-50	0.75-35	150	15.2 x 50.0 x 62
USLKG50	16-50	25-50	150	20 x 70.5 x 81.5
