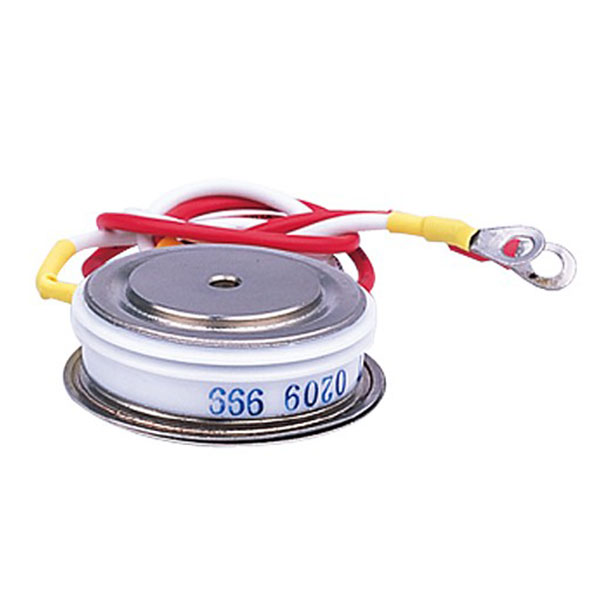

BI-directional triode thyristor(triacs)
Product Detail:
1.Feature
.IT(AV)=5-1000A
.V DRM/V RRM=100-2000V
.Hermetic metal case with ceramic insulator
.Hermetic glass-metal seal
.Metal case with ceramic insulator
.Conform to partial national standard GB4193-1986
.In accordance with IEC international electrical committee standard
2.Typical Application
.Quickspeed motor control
.Thermal control
.AC switch
3. Characteristic Stud-model
| Type No | IT(RSM)A | VTMV | VRRMV | IRRMmA | IGTmA | VGTV | IHmA | dv/dtV/µs | TjoC | RjcoC/W | Weightg | Outline No |
| KS5A | 5 | ≤2.6 | 100~2000 | ≤30 | ≤350 | ≤3.5 | ≤250 | ≥100 | -40 ~ +125 | ≤0.11 | 10 | B1 |
| KS10A | 10 | 25 | B2 | |||||||||
| KS20A | 20 | 27 | B3 | |||||||||
| KS30A | 30 | 110 | D2 | |||||||||
| KS50A | 50 | 130 | D3 | |||||||||
| KS100A | 100 | 165 | D4 | |||||||||
| KS200A | 200 | 335 | D5 |
| KS200A | 200 | ≤2.6 | 100~2000 | ≤30 | ≤350 | ≤3.5 | ≤350 | ≥200 | -40~+125 | ≤0.11 | 90/205 | F2E2 |
| KS300A | 300 | ≤0.08 | 105/290 | F2E3 | ||||||||
| KS500A | 500 | ≤40 | ≤400 | ≤400 | ≤0.04 | 205/375 | F4E4 | |||||
| KS800A | 800 | 230/430 | F5E5 | |||||||||
| KS1000A | 1000 | 300/540 | F6E6 |
