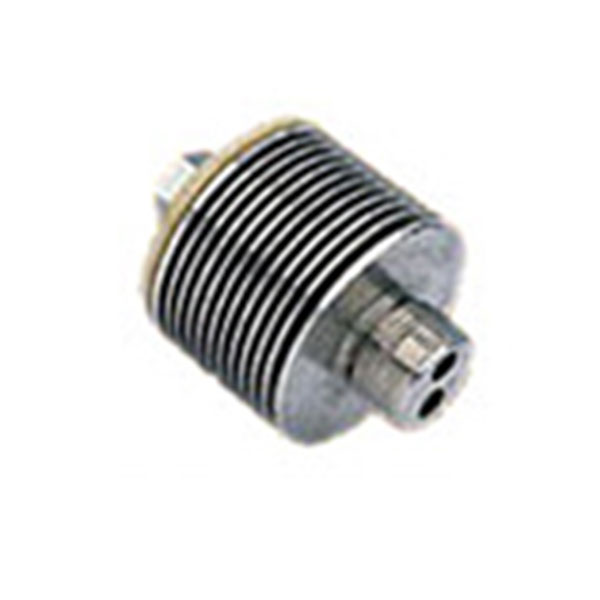

Rotation rectifiers

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Comparison:It can be worked under greater centrifugal forceTypicla applicationsSpecial used for rotation excitation dynamotor (electromotor)Technical parameter:ModelIT(RMS)VFMVRRMIRRMIFSMTjmRJCbear acentric acceleationNormalsuper speedAVVmAmAmA℃/wggZX4040≤1.35100-1600≤30.401500.8012502500ZX100100≤1. …

Detail

Messages

Product Detail:

Comparison:

It can be worked under greater centrifugal force

Typicla applications

Special used for rotation excitation dynamotor (electromotor)

Technical parameter:

Model	IT(RMS)	VFM		VRRM	IRRM	IFSM	Tjm	RJC	bear acentric acceleation
	IT(RMS)	VFM	Normal	VRRM	IRRM	IFSM	Tjm	RJC	super speed
	A	V		V	mA	mA	mA	℃/w	g	g
ZX40	40		≤1.35	100-1600	≤3	0.40	150	0.80	1250	2500
ZX100	100		≤1.6	100-2800	≤7	≤1.5	150	0.80	1250	2500
ZX200	200		≤1.6	100-2800	≤14	≤3.0	150	0.80	1250	2500
ZX300	300		≤1.6	100-2800	≤21	≤4.5	150	0.80	1250	2500
ZX500	500		≤1.6	100-2800	≤35	≤7.5	150	0.80	5000	5500
