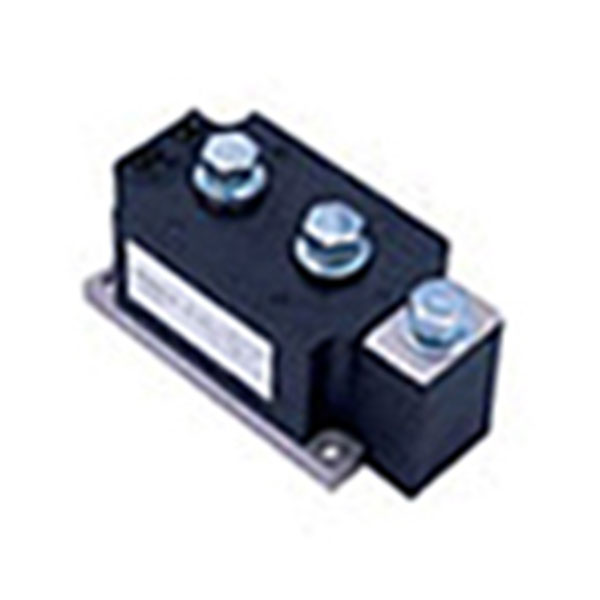

Fast Turn-off Thyristor-Fast Recovery Diode Module
Product Detail:
Product Introduction:
| MKC MHC | |||||||||||||||||
| IT(AV)@TC | VDRM VRRM | VTM@ITM | IDRM IRRM | IGT | VGT | IH | dv/dt | di/dt | tq | IT(RMS) | ITSM | Rjc | Tjm | Viso | Outline | ||
| A | oC | V | V | A | mA | mA | V | mA | V/μs | A/μs | μs | A | A×103 | oC/W | oC | VAC | |
| 150 | 85 | 600-1600 | 1.78 | 450 | 40 | 180 | 2.5 | 100 | 800 | 200 | 15-35 | 236 | 4.00 | 0.140 | 115 | 2500 | D |
| 200 | 85 | 600-1600 | 1.77 | 600 | 50 | 180 | 2.5 | 100 | 800 | 200 | 15-35 | 314 | 5.60 | 0.100 | 115 | 2500 | F |
| 300 | 85 | 600-1600 | 1.75 | 900 | 80 | 200 | 3.0 | 100 | 800 | 200 | 15-35 | 471 | 7.80 | 0.070 | 115 | 2500 | F |
| 300* | 55 | 600-1600 | 2.20 | 900 | 50 | 200 | 3.0 | 100 | 800 | 200 | 15-35 | 471 | 5.60 | 0.110 | 115 | 2500 | T |
| 400* | 55 | 600-1600 | 2.10 | 1200 | 80 | 200 | 3.0 | 100 | 800 | 200 | 15-35 | 628 | 7.80 | 0.087 | 115 | 2500 | U |
| water-cooling | |||||||||||||||||
| MZC | |||||||||||
| IT(AV)@TC | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Vi so | Outline | ||
| A | oC | V | V | A | mA | A | A×103 | oC/W | oC | VAC | |
| 150 | 100 | 600-1600 | 1.60 | 450 | 30 | 236 | 4.30 | 0.210 | 140 | 2500 | D |
| 200 | 100 | 600-1600 | 1.58 | 600 | 40 | 314 | 6.00 | 0.150 | 140 | 2500 | F |
| 300 | 100 | 600-1600 | 1.55 | 900 | 70 | 471 | 8.30 | 0.100 | 140 | 2500 | F |
| 300* | 60 | 600-1600 | 2.05 | 900 | 40 | 471 | 6.00 | 0.160 | 140 | 2500 | T |
| 400* | 60 | 600-1600 | 1.90 | 1200 | 70 | 628 | 8.30 | 0.130 | 140 | 2500 | U |
| water-cooling | |||||||||||
| MZC | |||||||||||
| IT(AV)@TC | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Vi so | Outline | ||
| A | oC | V | V | A | mA | A | A×103 | oC/W | oC | VAC | |
| 150 | 100 | 600-1600 | 1.60 | 450 | 30 | 236 | 4.30 | 0.210 | 140 | 2500 | D |
| 200 | 100 | 600-1600 | 1.58 | 600 | 40 | 314 | 6.00 | 0.150 | 140 | 2500 | F |
| 300 | 100 | 600-1600 | 1.55 | 900 | 70 | 471 | 8.30 | 0.100 | 140 | 2500 | F |
| 300* | 60 | 600-1600 | 2.05 | 900 | 40 | 471 | 6.00 | 0.160 | 140 | 2500 | T |
| 400* | 60 | 600-1600 | 1.90 | 1200 | 70 | 628 | 8.30 | 0.130 | 140 | 2500 | U |
| water-cooling | |||||||||||
| MZC | |||||||||||
| IT(AV)@TC | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Vi so | Outline | ||
| A | oC | V | V | A | mA | A | A×103 | oC/W | oC | VAC | |
| 150 | 100 | 600-1600 | 1.60 | 450 | 30 | 236 | 4.30 | 0.210 | 140 | 2500 | D |
| 200 | 100 | 600-1600 | 1.58 | 600 | 40 | 314 | 6.00 | 0.150 | 140 | 2500 | F |
| 300 | 100 | 600-1600 | 1.55 | 900 | 70 | 471 | 8.30 | 0.100 | 140 | 2500 | F |
| 300* | 60 | 600-1600 | 2.05 | 900 | 40 | 471 | 6.00 | 0.160 | 140 | 2500 | T |
| 400* | 60 | 600-1600 | 1.90 | 1200 | 70 | 628 | 8.30 | 0.130 | 140 | 2500 | U |
| water-cooling | |||||||||||
| MZC | |||||||||||
| IT(AV)@TC | VRRM | VFM@IFM | IRRM | IF(RMS) | IFSM | Rjc | Tjm | Vi so | Outline | ||
| A | oC | V | V | A | mA | A | A×103 | oC/W | oC | VAC | |
| 150 | 100 | 600-1600 | 1.60 | 450 | 30 | 236 | 4.30 | 0.210 | 140 | 2500 | D |
| 200 | 100 | 600-1600 | 1.58 | 600 | 40 | 314 | 6.00 | 0.150 | 140 | 2500 | F |
| 300 | 100 | 600-1600 | 1.55 | 900 | 70 | 471 | 8.30 | 0.100 | 140 | 2500 | F |
| 300* | 60 | 600-1600 | 2.05 | 900 | 40 | 471 | 6.00 | 0.160 | 140 | 2500 | T |
| 400* | 60 | 600-1600 | 1.90 | 1200 | 70 | 628 | 8.30 | 0.130 | 140 | 2500 | U |
| water-cooling | |||||||||||
Features
The chip and base-board are electric-insulation, 2500V AC voltage
Packing with international standard
Completely press-connection structure, with super temperature properties and power-cycling capability
The module below 200A are all forced wind-cooling, the module above 300A could select wind cooling or water-cooling for use.
The installation,use as well as maintenance are simple
Small volume and light weight
Typical-application
Contravariant device
Induction heating
Chopper
Instruction
VDSM/VRSM=VDRM/VRRM+200V
Only if proved separately, theIGT,VGT,IH,VTM,VFM,Viso are the ¡¡tested alue below 25oC, other parameters inside form all are the tested alue below Tjm
I2t = I2TSMtw / 2; in-tw: sine-wave current Dikuan
the tw inside equation is sine semi-wave current base-width, in the case of 50Hz,
If used in the case of frequency below 60Hz,
ITSM(8.3ms)=1.066ITSM(10ms),I2t(8.3ms)=0.943I2t(10ms)
