DX Current Transformers
Product Detail:
Dx Series:
Model DX-20, DX-30, DX-40 are available for connecting with cable, and also available for connecting with bus bar.
Maximum voltage:
Frequency:
Class:
Short-time thermal current:
Mounting methods:
Window dimensions :0.66KV
50-60Hz
1.0
Ith=60Ih
either by din rail (35mm) or by screws
diameter 22mm (DX-20, DX-20L)
31×10mm (DX-30, DX-30L)
41×10mm (DX-40)
Technical data& Specification:
| Model | Primary/secondary | Busbar HoleDimension(MM) | RatedBurden(VA) | Class | RatedVoltage |
| DX-20 | 50/5A-150/5A | f=20mm | 1.5-2.5 | 1.0 | 660V |
| DX-30 | 100/5A-500/5A | 30×10mm | 1.5-2.5 | 1.0 | 660V |
| DX-40 | 150/5A-1000/5A | 40×10mm | 3-10 | 1.0 | 660V |
| DX-20L | 50/5A-150/5A | f=20mm | 1.5-2.5 | 1.0 | 660V |
| DX-30L | 100/5A-500/5A | 30×10mm | 1.5-2.5 | 1.0 | 660V |

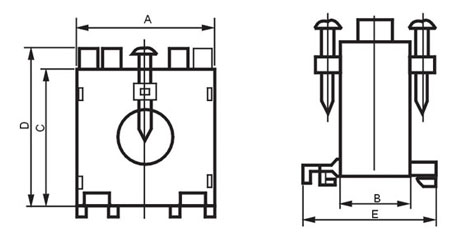

Dimension of case (mm):
| Model | A | B | C | D | E |
| DX-20 | 53 | 28 | 57 | 66 | 54 |
| DX-30 | 53 | 28 | 57 | 66 | 54 |
| DX-40 | 71 | 45 | 73 | 81 | 65 |
| DX-20L | 53 | 28 | 57 | 66 | 54 |
| DX-30L | 53 | 28 | 57 | 66 | 54 |

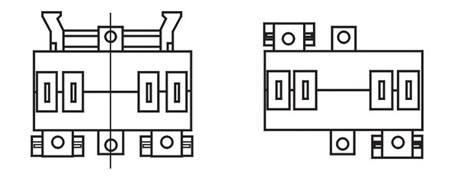

Outline Drawing:
