SF-96-6 SF72-6 Series Panel Meter
Product Detail:
Measuring Ranges :
AC.DC.Ameter.Voltmeter
Moving coil type:DC 100 uA 50A DC 30V-600V
Moving iron type:AC 1A-60A AC 150V-60V
Rectifier type:AC 3V-600V AC 1A-5A
Accuracy:class 1.5

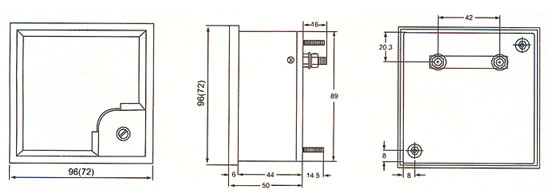

Model :SD-96 SF-72 SF-48
AC ampere overolad Scale:100%,200%,300%,500%,
DC Ammeters above 50A require abasic 50mV meter combined with an external shunt.
AC Ammeters above 100A require a basic 5A meter combined with an External CT.
AC voltmeters above 600 vp;ts reqiore a basoc 150V meter combined with an external PT
Model:SF-96Hz SF-72Hz SF-48Hz:
| Accuracy | Class1.5 |
| Working position | Vertical |
| Rated voltage | 100V,220V,380V,500V |
| Limit of voltage fluctuation | ±20% |
| consumption | Max.15mA |
| Test voltage | 2KV,50c/s |
| Measurign range | 45-65 c/s |
| Compostion | Glass window,ABS resin frame and case,PC glss fiber base mounting fittings included |
| Colour | Black base and frame,white scale plate and meter body |
| Pointer | Stick shape in black colour |
