SFT Series Panel Meter

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: ModelNameSpecificationPrimary CT(A)AccuracySFT-80AC AmmeterFrom 10A,15A,20A,30A... to 3000A,5000AWithext.c/t 1A or 5AClass 1.5From 0.1A,0.5A,1A,5A,10A,25A...to 80A ,100AAC direct connectionClass 1.5SFT-670DC AmmeterFrom 50uA,100uA,1mA,5mA...1A,5A,10A,25A,30A... to 100ADC direct connectionClass 1.5Fr …

Detail

Messages

Product Detail:

Model	Name	Specification	Primary CT(A)	Accuracy
SFT-80	AC Ammeter	From 10A,15A,20A,30A... to 3000A,5000A	Withext.c/t 1A or 5A	Class 1.5
		From 0.1A,0.5A,1A,5A,10A,25A...to 80A ,100A	AC direct connection	Class 1.5
SFT-670	DC Ammeter	From 50uA,100uA,1mA,5mA...1A,5A,10A,25A,30A... to 100A	DC direct connection	Class 1.5
		From 10A,15A,20A,30A...2500A,3000A... to 8KA,10KA	With ext.shunt 50MV,60MV or 75MV	Class 1.5
SFT-60	AC Voltmeter	Form 30V,50V,100V... to 300V,500V,600V	AC direct connection	Class 1.5
		From 1KV,2KV,5KV... to 380KV,450KV	With ext.voltage transformer	Class 1.5
SFT-680	DC Voltmeter	From 10V,20V,30V... to 500V,600V,1000V	DC direct connection	Class 1.5
		From 1KV,2KV,5KV... to 5KV,9KV,10KV	With ext.resistor	Class 1.5
SFT-780	Frequency Meter	Voltage: 110V ,220V ,380V, 440V		Class 1.0
		Frequency:45-55Hz,45-65Hz,55-65Hz,47-53Hz
SFT-560	Power factor meter(cos∮)	Voltage:110V,220V,380V,440V current:1A or 5A	for 1 phase or 3 phase	Class 2.5
		Scale:0.5cap-1-0.5ind,0.3cap-1-0.1ind,0.7cap-1-0.2ind
SFT-50	Power meter (Kw or kvar)	Voltage:110V,220V380V.440V current:1A or 5A	For 1P 1W,3P3W,3P4W	Class 1.5
			With C/T or Voltage transformer

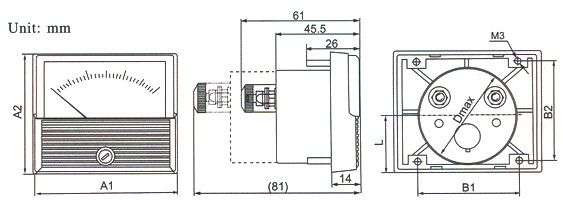

Size of square or rectangular with round panel cut-out meter:

Model	A1	A2	B1	B2	L	D1
SFT-80	120	100	84	84	31.2	47.5
SFT-670	80	80	64	64	29.2	47.5
SFT-60	80	70	54	54	27.2	47.5
SFT-680	70	60	48	48	27.2	47.5
SFT-780	60	50	34	34	23.2	47.5
SFT-560	60	60	36	36	30.2	47.5
SFT-50	50	50	34	34	23.2	47.5
