Product Detail:

96X96	72X72	48X48	96X48

General technical characteristics for digital meter with swtchboard:

Model:SF-D96W(var) SF-D72W(var) SF-DP3 SF-D48W(var)

Size:96X96mm,72X72mm,96X48mm,48X48mm

Function: measure the single phase wattmeter,single phase varmeter,3P3W wattmeter,3P3W varmeter,3P4W wattmeter or 3P4W

Feature:

1.display:4 1/2digital .LED display (red or green)

2.Accuracy:0.5%±3 digit

3.Auxiliary power:AC 110V± 10% 50/60Hz AC 220V±10% 50/60Hz

4.Input signal:Voltage 100V,220V,380V or according to the requirement current:0-5A or 0-1A.

5.Measuring range: All ranges

6.Consumption:<3.2VA

7.Max signal consumption:<0.3VA

8.Operating environment:temperature-10oC ~+50oC humidity:≤ 85%

9.Storage Environment:temperature -30oC~+60oC humidity:≤ 70%

10.Heat resistance:case of non-combustible plastic material

11.Voltage testing:over 2000V

12. Fastening:by means of nuts, absolutely safe, fast robust, side-by-side.

Digital Meter With DIP Switch:

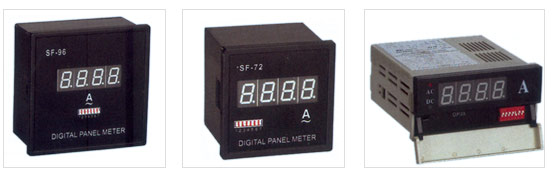

AC Ammeter with dip switch :

96X96mm	72X72mm	96X48mm

AC Voltmeter with dip switch:

96X96mm	72X72mm	96X48mm
