Product Detail:
Extension Sockets & Appliance Connectors
Three phase extension socket/appliance connector is an important design breakthrough.
Now there is a common unit for both cord extension socket and appliance connector applications.
All connectors have impact resistant, UV stabilised mouldings.
The IP66 rating can be achieved when extension socket/connectors are used in conjunction with compatible accessories such as 56P plugs, 56PA plugs and 56A1 appliance inlets.
IP66 rated units feature a hose proof cap which maintains the intemational protection rating when the accessory is not being used.
Note:Cap not provide as standard with single phase extension sockets. Refer 56T series for terminators to connect hose to non standard gland nut thread.
Options available: 56SC2 socket cap to suit single phase extension sockets. 56CSC310 and 56CSC315 available in resistant orange -add RO to catalugue Number, e.g.56CSC310 becomes 56CSC310RO.
Cata. No. | Ith (A) | Ui (V) | No. of sockets | Conductor term. size in mm2 | Cable nominal diameter in mm2 | IP rating | Matching plug straight | Matching plug angle | Gland nut thread | ||
Min | Max | Min | Max | ||||||||
56CSC310 | 10 | 250 | 3 flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P310 | 56PA310 | 20mm |
56CSC315 | 15 | 250 | 3 flat | 1.0 | 6 | 6 | 12.5 | 66 | 56P315 | 56PA315 | 20mm |
56CSC410 | 10 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P410 | 56PA410 | 23mm |
56CSC420 | 20 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P420 | 56PA420 | 23mm |
56CSC432 | 32 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
56CSC440 | 40 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
56CSC450 | 50 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
56CSC510 | 10 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P510 | 56PA510 | 23mm |
56CSC520 | 20 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P520 | 56PA520 | 23mm |
56CSC532 | 32 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
56CSC540 | 40 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
56CSC550 | 50 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |
Note: Ui-Insulation voltage;Ith-Conventional free air current
Pendant Outlets
56PO three phase pendant outlets are a hanging version of our 56CSC connectors. All have impact resistant UV stabilised mouldings.
Cata. No. | No. of sockets | Conductor term. size in mm2 | Cable nominal diameter in mm2 | IP rating | Matching plug straight | Matching plug angle | Gland nut thread | ||||
Min | Max | Min | Max | ||||||||
56PO410 | 10 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P410 | 56PA410 | 23mm |
56PO420 | 20 | 500 | 4 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P420 | 56PA420 | 23mm |
56PO432 | 32 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P432 | 56PA432 | 37mm |
56PO440 | 40 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P440 | 56PA440 | 37mm |
56PO450 | 50 | 500 | 4 round | 2.5 | 16 | 9 | 28 | 66 | 56P450 | 56PA450 | 37mm |
56PO510 | 10 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P510 | 56PA510 | 37mm |
56PO520 | 20 | 500 | 5 round | 1.0 | 6 | 6 | 15.7 | 66 | 56P520 | 56PA520 | 37mm |
56PO532 | 32 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P532 | 56PA532 | 37mm |
56PO540 | 40 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P540 | 56PA540 | 37mm |
56PO550 | 50 | 500 | 5 round | 2.5 | 16 | 9 | 28 | 66 | 56P550 | 56PA550 | 37mm |
250V plugs
The 56 series single phase plugs are available in 10A, 15A, 20A and 32A Pin configurations to suit the Australian and New Zealand markets and in the British 13A square pin configuration. All plugs are IP66 rated.
Cata.No.(Straight)Cata. No.(Angled) | 56P310 | 56P315 | 56P313 | 56P32056PA320 | 56P33256PA332 | |
Rated operational voltage Ue(50Hz) | Volts | 250 | 250 | 250 | 250 | 250 |
Max. thermal current enclosed | Amps | 10 | 15 | 13 | 20 | 32 |
Number of pins(including earth) | 3 | 3 | 3 | 3 | 3 | |
Pin configuration | ||||||
Cable entry diameter | Min | 6 | 8 | 6 | 7 | 10 |
Max | 9 | 11 | 10 | 16 | 27 | |
Capacity mm2 | Min | 0.75 | 1.0 | 0.75 | 1 | 2.5 |
Max | 1.5 | 1.5 | 1.5 | 6 | 16 |

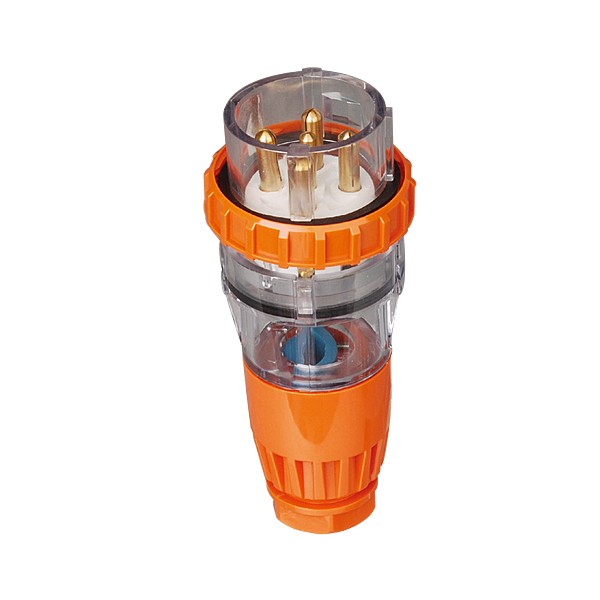

500V plugs
There plugs are all rated IP66 when fitted to a 56 series cord connector or socket outlet. The body section is transparent for quick and easy inspection of the terminals and cable entry. Plugs are available with 4 to 7 pins. 16A to 50A to cover most applications.
Cata.No.(Straight)) Cata. No.(Angled) | 56P41656PA416 | 56P416K56PA416K | 56P42056PA420 | 56P43256PA432 | 56P432RF56PA432RF | 56P43556PA435 | 56P44056PA440 | 56P45056PA450 | |
Rated operational voltage Ue(50Hz) | Volts | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
Rated thermal current enclosed | Amps | 16 | 16 | 20 | 32 | 32 | 35 | 40 | 50 |
Number of pins(including earth) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Pin configuration | |||||||||
Cable entry diameter | Min | 7 | 7 | 7 | 10 | 10 | 10 | 10 | 10 |
Max | 16 | 16 | 16 | 27 | 27 | 27 | 27 | 27 | |
Terminal Capacity mm2 | Min | 1 | 1 | 1 | 2.5 | 2.5 | 2.5 | 2.5 | 4 |
Max | 6 | 6 | 6 | 16 | 16 | 16 | 16 | 16 |
