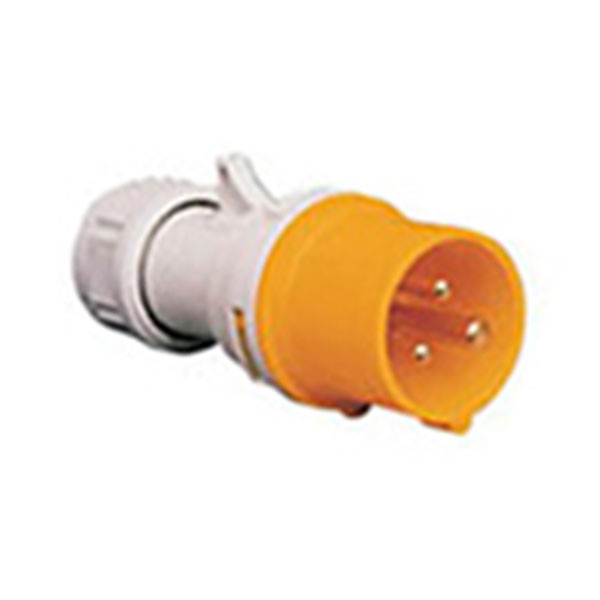

Industrial Twist plugs 16A32A
Product Detail:
  |   |   |   |
| 013n-4/023n-4 | 013n/023n | 014n/024n | 015n/025n |
Specification
| Model | Nominal | Pole No. | Protection degree | |
| Current(A) | Voltage(V) | |||
| 013n-4 | 16A | 110V~130V | 2P+E | IP44 |
| 013n | 16A | 220V~250V | 2P+E | IP44 |
| 014n | 16A | 380V~415V | 3P+E | IP44 |
| 015n | 16A | 220V~250V | 3P+N+E | IP44 |
| 023n-4 | 32A | 110V~130V | 2P+E | IP44 |
| 023n | 32A | 220V~250V | 2P+E | IP44 |
| 024n | 32A | 380V~415V | 3P+E | IP44 |
| 025n | 32A | 240V~415V | 3P+N+E | IP44 |
Drawing
| 16A | 32A | |||||
| Poles | 3 | 4 | 5 | 3 | 4 | 5 |
| a | 118 | 124 | 153 | 146 | 146 | 152 |
| b | 82 | 88 | 95 | 100 | 100 | 106 |
| c | 47 | 53 | 61 | 63 | 63 | 70 |
| K | 6-15 | 6-15 | 8-16 | 10-20 | 10-20 | 12-22 |
| SW | 38 | 38 | 42 | 50 | 50 | 50 |
