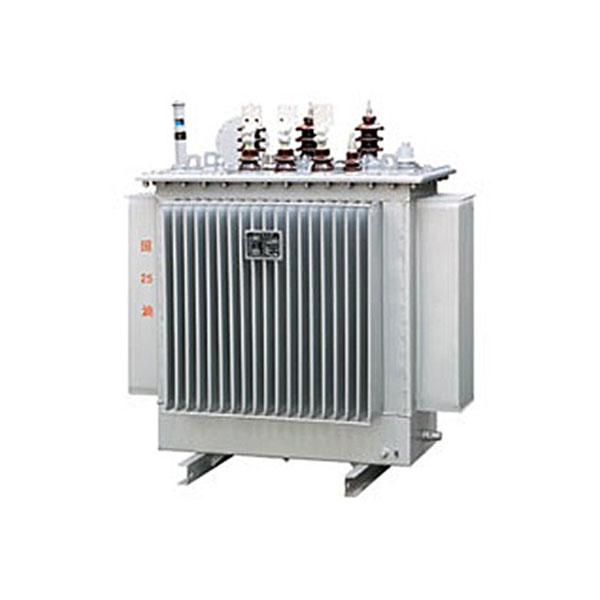

Class 10KV S11 series transformer

Tel：+0086.577.61566899

Address：No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Rated capacity (KVA)Voltageconne ction group tabLossunload curren t(%)resistant voltageweightMeasure(MM)Distance of Din railhigh-voltage (kv)extend connectionlow-voltag e(kv)unloadloadempty weightoil weighttotal weightlengt h(L)width (W)height (H …

Detail

Messages

Product Detail:

Rated capacity (KVA)	Voltage			conne ction group tab	Loss		unload curren t(%)	resistant voltage	weight			Measure(MM)			Distance of Din rail
Rated capacity (KVA)	high-voltage (kv)	extend connection	low-voltag e(kv)	conne ction group tab	unload	load	unload curren t(%)	resistant voltage	empty weight	oil weight	total weight	lengt h(L)	width (W)	height (H)	cross(M) ×length
30	6 6.3 10 10.5 11	±5% (±2×2.5%)	0.4	Yyn0	100	600	2.1	4	215	85	375	965	700	1060	400×450
50					130	870	2.0		275	90	440	995	735	1085	400×450
63					150	1040	1.9		345	115	565	1085	7058	1315	400×450
80					180	1250	1.8		345	100	530	1005	755	1125	400×450
100					200	1500	1.6		395	105	590	1020	775	1130	400×450
125					240	1800	1.5		445	110	665	1035	770	1190	400×450
160					280	2200	1.4		510	120	745	1115	780	1205	550×550
200					340	2600	1.3		585	140	875	1270	740	1225	550×550
250					400	3050	1.2		690	160	1035	1380	840	1335	550×550
315					480	3650	1.1		805	175	1165	1370	775	1395	660×660
400					570	4300	1.0		955	200	1400	1450	895	1440	660×660
500					680	5150	1.0		1120	225	1610	1495	905	1500	660×660
630					810	6200	0.9	4.5	1335	265	1935	1575	980	1685	660×660
800					980	7500	0.8		1675	335	2410	1665	995	1795	820×820
1000					1150	10300	0.7		1855	380	2755	1770	1160	1855	820×820
1250					1360	12000	0.6		2205	445	3260	1825	1235	1915	820×820
1600					1640	14500	0.6		2515	535	3905	1855	1300	2000	820×820
