TDGC2 TSGC2 TDGC2J TSGC2J Voltage Regulator
Product Detail:
1.Application
The product is special auto transformer which is connectded in different forms.Its outputvoltage can be regulated smoothly and continuously from zero to the maximum value.Theprovision of an indicating meter is made for the models TDGC0.2,0.25,0.5/0.5(M).All themodels find popular applications in industries,agriculture and scientific researches,and areparticularly suited to servs as ancillary facilities for such equipment as various machine tools,transistor curve tracers,projecting TV sets,and analytical instruments in petroleum industry,etc.
2.Specification
| Type | Capacity(kVA) | Phase | Frequency(Hz) | Input voltage(V) | Output voltage(V) | Max output current(A) | Shape Round |

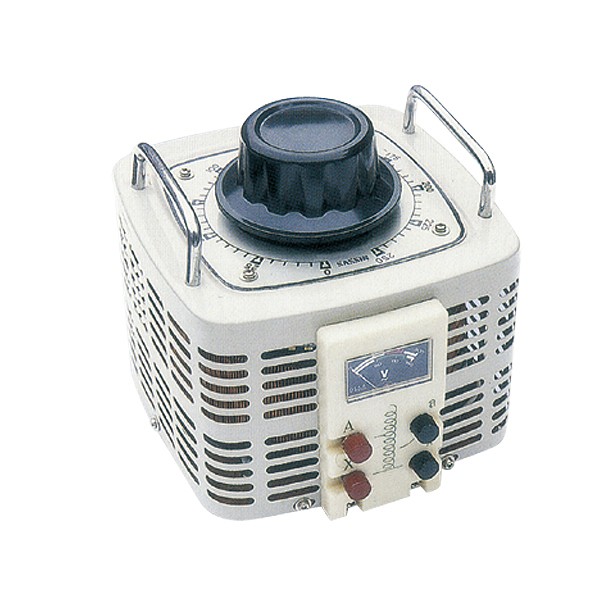

| TDGC2 TDGC-0.5(C) | 0.5 | 1 | 50/60 | 110/220 | 0-250 | 0.88/2 | Round |
| TDGC2 TDGC-1/0.5 | 1 | 1.6/4 | |||||

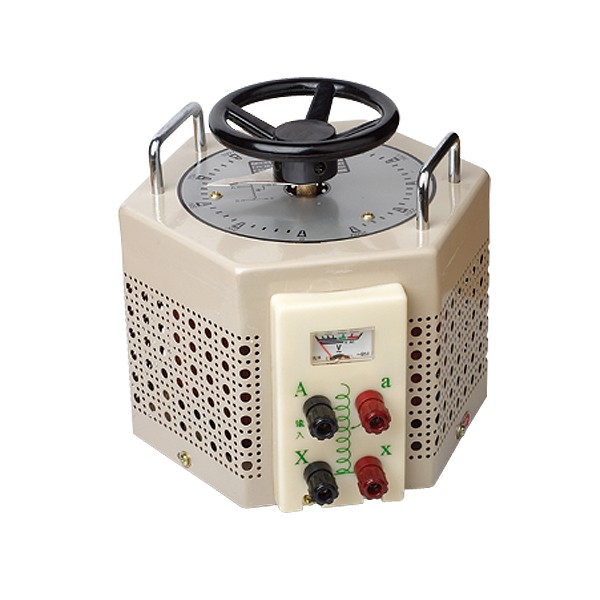

| TDGC2 TDGC-2 | 2 | 3.2/8 | Hexagon | ||||
| TDGC2 TDGC-3/0.5 | 3 | 4.8/12 | Round | ||||
| TDGC2 TDGC-5/0.5 | 5 | 8/12 | Octagon | ||||
| TDGC2 TDGC-10/0.5 | 10 | 16/40 | |||||
| TDGC2 TDGC-15/0.5 | 15 | 24/60 | |||||
| TDGC2 TDGC-20/0.5 | 20 | 80 | |||||

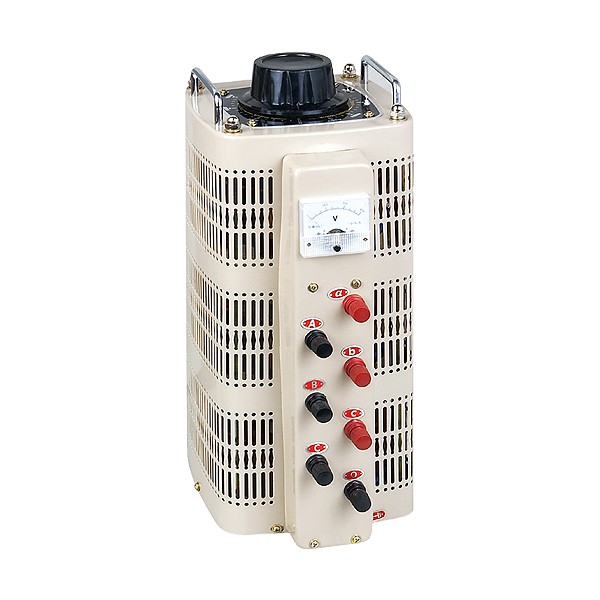

| TSGC2 TSGC-3/0.5 | 3 | 3 | 50/60 | 220/380 | 0-430 | 1.6/4 | Hexagon |
| TSGC2 TSGC-6/0.5 | 6 | 3.2/8 | |||||
| TSGC2 TSGC-10/0.5 | 10 | 5.4/13.4 | Octagon | ||||
| TSGC2 TSGC-15/0.5 | 15 | 20 | |||||
| TSGC2 TSGC-20/0.5 | 20 | 28 | |||||
| TSGC2 TSGC-30/0.5 | 30 | 40 |
