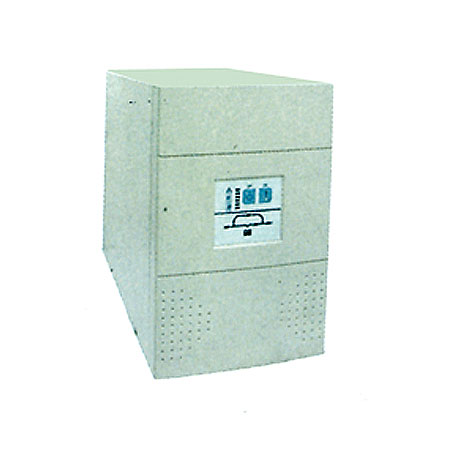

Uninterruptable Power Supply(UPS)

Category:- UPS & EPS

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: Back-up UPS is a technically-modified new product of the company on the basis of the previous UPS-500VA one and has multifunction as automatic voltage regulation of local electricity, sychronous switches for users load,protections of over voltage,over voltage,overcurrent,overcharge of batterise,feed and so on.


Detail

Messages

Product Detail:

1.Application

Back-up UPS is a technically-modified new product of the company on the basis of the previous UPS-500VA one and has multifunction as automatic voltage regulation of local electricity, sychronous switches for users load,protections of over voltage,over voltage,overcurrent,overcharge of batterise,feed and so on.

2.Specification

Input voltage/Output voltage 220V±20%/220V±10%
Frequency 50Hz/60Hz
Efficienty more than 80%
Ambient temprature -10oC~+40oC
Charger time 8 hours/time
Inverter supply time (Rating power 80%)3-4mins(rating power 50%)8-10mins
Inverter Charge time <10ms
Output waveform Square wave
Yawp <50dB

3.Outline & Packing

Type Time Outline(cm) Weight(kg)
L W H
UPS-350VA 3-7min 26 10 14 4.3
UPS-500VA 5-15min 36 11 16 7.2
UPS-1000VA 5-15min 36 15 23 11.5
