ADZ30 Miniature Circuit Breaker

Category:- Miniature Circuit Breaker

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: ADZ30 miniature circuit breaker is used in the single phase residual current of AC50/60Hz, rated voltage 220V or below for protecting electron circuit from overload and short circuitl This product has advantages of high breaking capacity, small volume, width is only 18mm. Zero and live wire are cut off at the same time, preventing the person and fire danger. It is the idealest distribution protective switch in the civil residence field at present. This product conforms to the requiremetn of IEC60898.


Detail

Messages

Product Detail:

Aplication

ADZ30 miniature circuit breaker is used in the single phase residual current of AC50/60Hz, rated voltage 220V or below for protecting electron circuit from overload and short circuitl This product has advantages of high breaking capacity, small volume, width is only 18mm. Zero and live wire are cut off at the same time, preventing the person and fire danger. It is the idealest distribution protective switch in the civil residence field at present. This product conforms to the requiremetn of IEC60898.

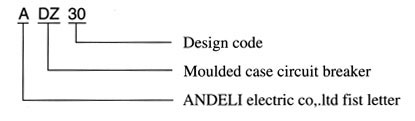

Type and meanings


Rated    current(A)

No.of    pole

Rated    voltage(V)

Rated    curret of frame

Rated    capacity of short circuit

Mechanical    life

6,10,16,20,25,32

1+N

230

3000

0.65~0.70

20000

Overload current tripping characteristic

Testing    current

Rated    current

Limited    time

Appointed    resalt

Start    state

Note

1.13In

all

t=1h

non-trip

cold    state


1.45In

all

t<1h

trip

heat    state

The    current risn steadily to a fixed
value within 5s

2.55In

all

1    <60S< div>

trip

cold    state


5In

all

t=0.1s

non-trip

cold    state

Open    the supplementary switch,
connect the power

10In

all

t<0.1s

trip

cold    state

Open    the supplementary switch,
connect the power

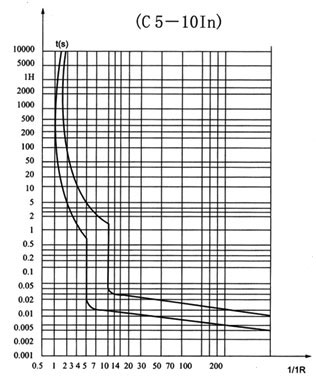

Motion characteristic curve

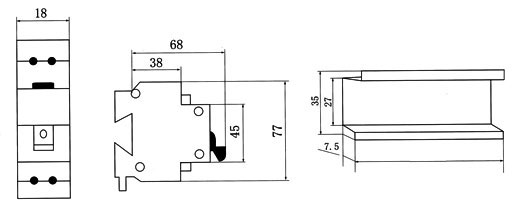

Outline and installation dimensions
