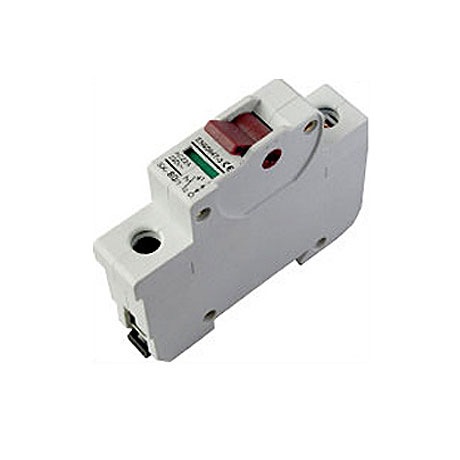

CPH7-100 Miniature Circuit Breaker

Category:- Miniature Circuit Breaker

Tel:+0086.577.61566899

Address:No#221,Wei 17 ROAD,Economic Develop Zone YueQing CITY ZHEJIANG PROVINCE ,CHINA

Intro: The products of H7 belong to the advanced level of the nineties in the world instead of the older generation of MPLS6. They have protective function as shortage as overload, and are used in lighting distribution system in industy, commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high break capacity, reliable sensitive action, convenient, multipole assembing, long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.


Detail

Messages

Product Detail:

Aplication

The products of H7 belong to the advanced level of the nineties in the world instead of the older generation of MPLS6. They have protective function as shortage as overload, and are used in lighting distribution system in industy, commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade(up to IP20), high break capacity, reliable sensitive action, convenient, multipole assembing, long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Specification

Conforms    to standard of electrical

EN60898(IEC898)    GB10963-99

Rated    current(Ue)

230V/400V;    50/60Hz

Rated    breaking capacity

10KA    IEC898(0.5~63A)

15KA    IEC947-2(0.5~63A)

Short    circuit breaking capacity of DC

Max.    48V(KL7 10KA)single pole

Max.    250V(KL7-DC, 6KA)single pole

Perfermance

C,    D charactisistic curve

Max.fuse    that can be connected to

100AgL(>10KA)

Selective    grade

3

Working    ambient temperature

-5    to +40°C

Enclosed    protective class

P40(Under    mounting)

Life:    Electrical Mechnical

Not    less of 8000 times switching operation
Not less of 20000 times switching operation
